Hoffman Presses


Product Image
View Larger

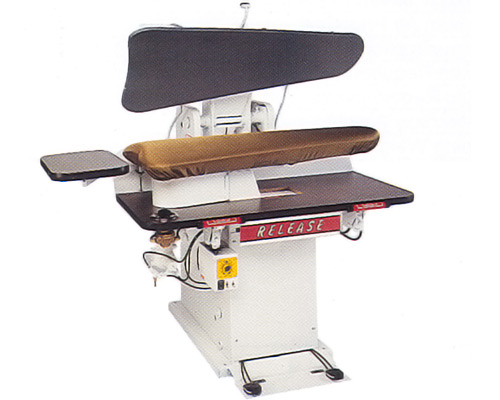

UA-L8S legger/utility ( M1 topper uses same UA Universal frame)

Versatile configuration incorporates a crotch cutout allowing creasing of an entire leg to proper height in one lay. Narrow end of buck is ideal for topping or utility work. Table-mounted pressure control enables easy, accurate adjustment for fabric tupe. Specially-designed steam and vacuum chambers provide better heat and steam distribution, faster drying, and even finishing.

Typical Specifications
  • Steam Consumption @ 80 PSIG: 30lb/hr (13.6kg/hr)
  • Maximum Steam Pressure: 125 PSIG (862 K Pa)
  • Maximum Air Pressure: 80 PSIG (552 K Pa)
  • Air Consumption - Free Air Per Cycle @ 80 PSIG: 0.69 ft³ (0.02M³)
  • Vacuum Requirement (Minimum): 0.75 HP
  • Vacuum Connection Size: 2in
  • Weight: 625lb [283 kg]
  • Shipping Weight: 675 lb [305 kg]
